Ofankor Solar and Storage Installation in Ghana
Project Background: This customer feedback set documents a complete residential solar and energy storage installation in Ofankor, Ghana. The project package is internally described as a 30kWh complete system, while the detailed component list specifies two 16kWh batteries.
Installed Solution: Based on the detailed component ratings, the system has 32kWh of nominal battery capacity, two 11.2kW inverters with 22.4kW combined nominal power, and twenty 580W panels providing 11.6kWp of nominal solar capacity. The package also includes twenty solar-panel support sets and two WiFi modules.
Project Configuration
| Location | Ofankor, Ghana |
|---|---|
| Battery storage | 2 × 16kWh batteries (32kWh nominal total) |
| Inverters | 2 × 11.2kW inverters (22.4kW combined nominal rating) |
| Solar array | 20 × 580W solar panels (11.6kWp nominal panel capacity) |
| Mounting | 20 solar-panel support sets |
| Monitoring | 2 WiFi modules |
Capacity note: The folder name uses “30kWh complete system,” but the supplied component list identifies two 16kWh batteries. This page therefore uses the component-based nominal total of 32kWh.
Related Products
Explore product ranges related to the specified system configuration:
15–16kWh batteriesReview the related floor-standing rangeView batteries →
Solar invertersCompare available inverter modelsView inverters →
Solar panel rangeCompare available solar modulesView solar panels →The inverter card links to the inverter category because the website does not currently list an exact 11.2kW product page. Confirm model compatibility from the issued project documents.
Customer Installation Photo
Customer Feedback Video
The following video provides an additional view of the completed Ofankor solar and storage installation.
What the Feedback Confirms

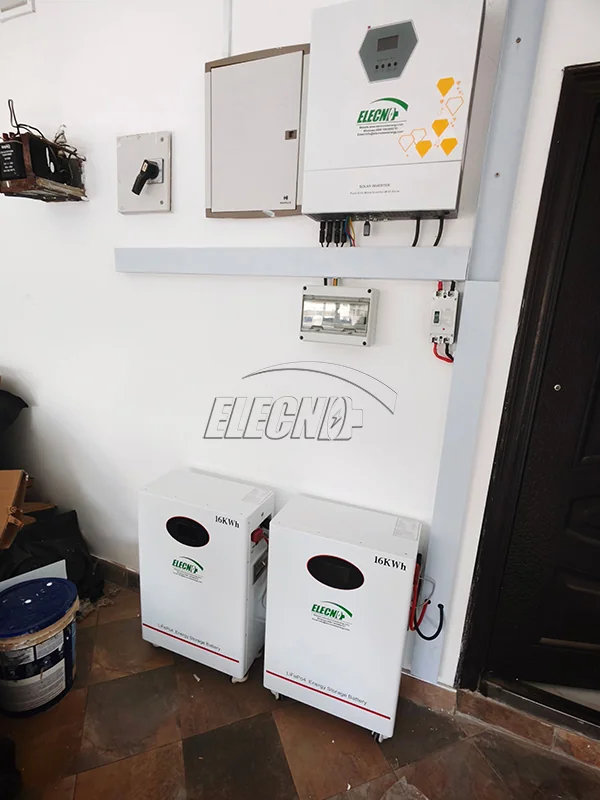

The photograph confirms installation of two 16kWh ELECNO battery cabinets and one visible inverter with associated electrical equipment. The complete configuration values come from the supplied project description; other equipment may be located outside the photograph.
No utility bills, monitoring screenshots or commissioning test records were supplied. Therefore, this case does not claim a measured solar yield, backup duration, savings percentage or system efficiency.
Questions About This Ofankor Project
Why is the title 32kWh when the folder says 30kWh?
The detailed list specifies two 16kWh batteries, giving 32kWh of nominal nameplate capacity. The folder name appears to use 30kWh as a rounded project label.
What are the combined inverter and solar ratings?
Two 11.2kW inverters provide 22.4kW of combined nominal inverter rating. Twenty 580W panels provide 11.6kWp of nominal panel capacity. These are nameplate totals, not measured output.
What monitoring equipment was supplied?
The project list includes two WiFi modules, corresponding to the two-inverter configuration. No monitoring screenshots were included in the feedback material.
Plan a Similar Solar Storage System
For a site-specific proposal, provide the load list, daily energy consumption, available roof area and required backup duration. Then contact ELECNO to confirm the battery, inverter, solar-panel, mounting and monitoring configuration.
